Water cuts

Our waterjet cutting system has a maximum operating pressure of 3,800 bar and thus easily processes material thicknesses of over 100 mm. The maximum sheet size is 3,000 x 4,000 mm.

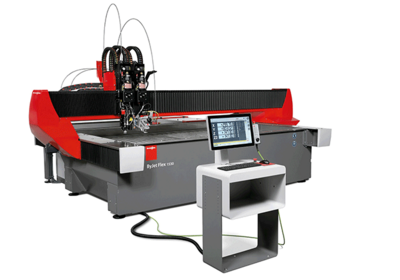

Photo ByJet Flex 1530
Waterjet cutting system

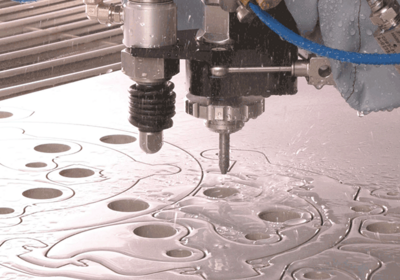

Photo water jet system

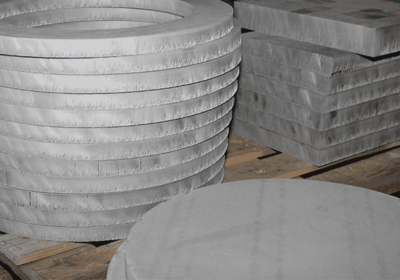

Photo water jet cuts
Performance data
  • Cut qualities: Fine cut, quality cut, simple separation cut (please specify when enquiring, request samples if necessary!)
  • Sheet thicknesses up to 150 mm and more (depending on cutting speed).
  • Accuracy depending on cutting speed: max. ± 0.1 mm for thin sheet metal
  • Material: stainless steel, aluminium, copper, brass, plastic, stones, ceramics, elastomeric bearings
  • Profile shapes: Sheets / panels, square tubes, other profiles such as angles, U-profiles etc. by arrangement
  • Sheet / panel sizes: max. 3,000 mm x 4,000 mm
Service
  • just like our laser systems, the waterjet cutting system runs in 2 and 3 shifts, as well as on most Saturdays - so that you can quickly get your urgently needed cut parts or components
  • various quarto plate thicknesses from 10 - 60 (110) mm in 1.4301/1.4307, 1.4404/1.4571 and also in Lean Duplex Stainless 1.4062 / 1.4162 in stock
