Bracket anchor system MK6
MODERSOHN® MK6 - The new generation of masonry fixings
The new MODERSOHN® MK6 bracket anchor from Leviat combines the best of two worlds. The hybrid fastening system benefits from the technical advantages of Modersohn's load-bearing anchors and the Halfen HK5 system.
As before, the slim design enables reduced heat transfer.
Different variants enable use for almost any application.

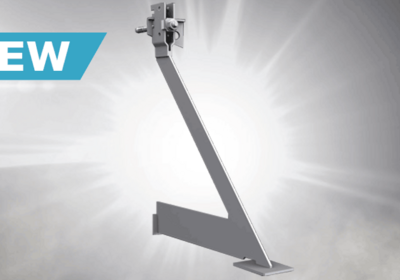

Product innovation MODERSOHN® fastening system MK6

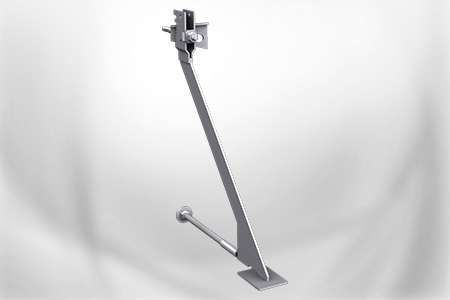

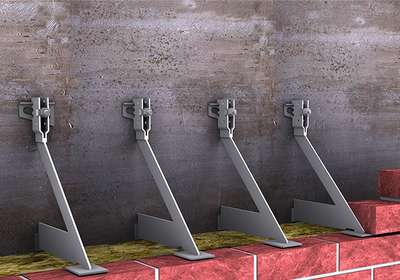

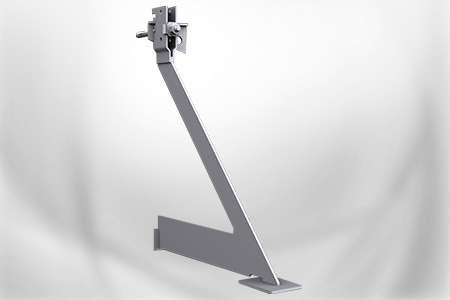

Single bracket anchor MK6-E-N, Modersohn's new standard anchor as a support for facing brickwork

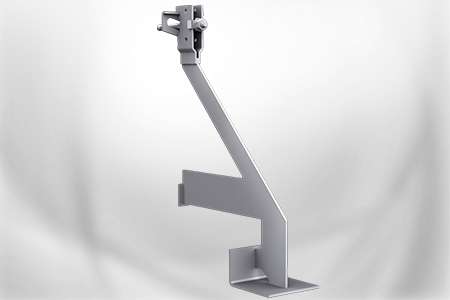

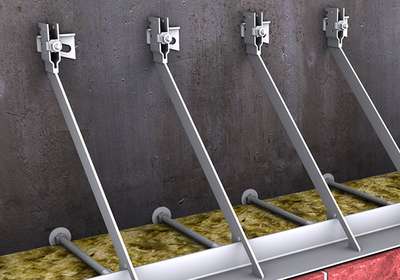

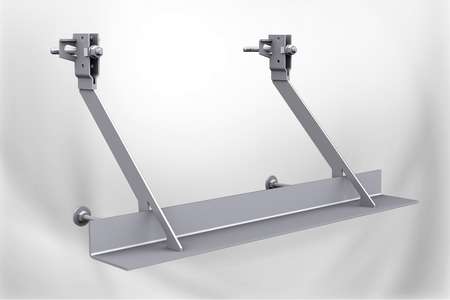

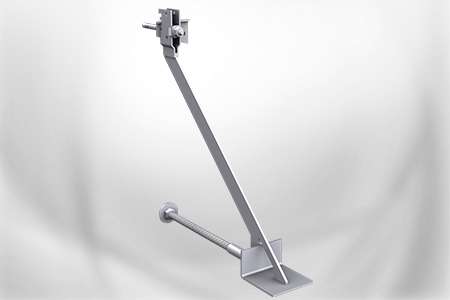

Modersohn's new angle support bracket MK6-K-D

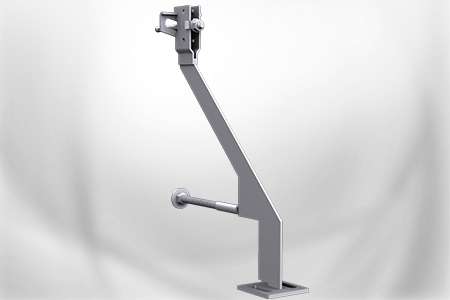

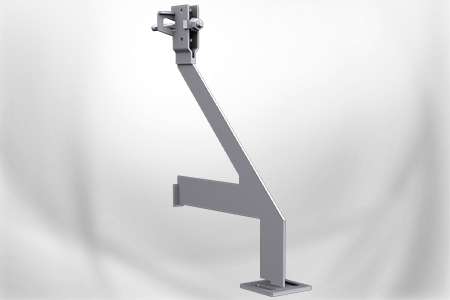

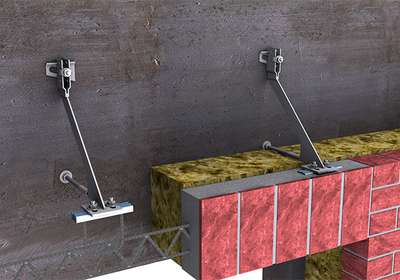

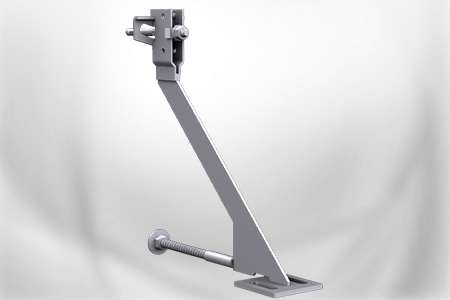

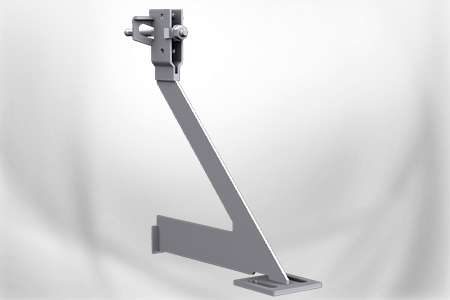

Modersohn's new Precast fixings MK6-F-D
Product information
Would you like detailed information on
our MODERSOHN® MK6 anchor system?
Advantages
- Bracket head with building authority approval
- Type-approved console
- Fastening with approved fasteners such as anchor channels or dowels
- CE marking in accordance with DIN EN 845-1
- Different types available for the realization of different situations on site (e.g. single bracket anchors, angle bracket anchors, brackets for fastening prefabricated parts)
…
- Load levels: 4.0 kN - 12.0 kN (> on request)
- Cantilever dimensions: up to 450 mm (other dimensions on request)
- Height adjustment: ± 20 mm with angled perforated plate
- Material: Stainless steel of corrosion resistance class (CRC) III-V
- Validation: Bracket head according to DIBt approval Z-21.8-1922 Type test or static calculation
